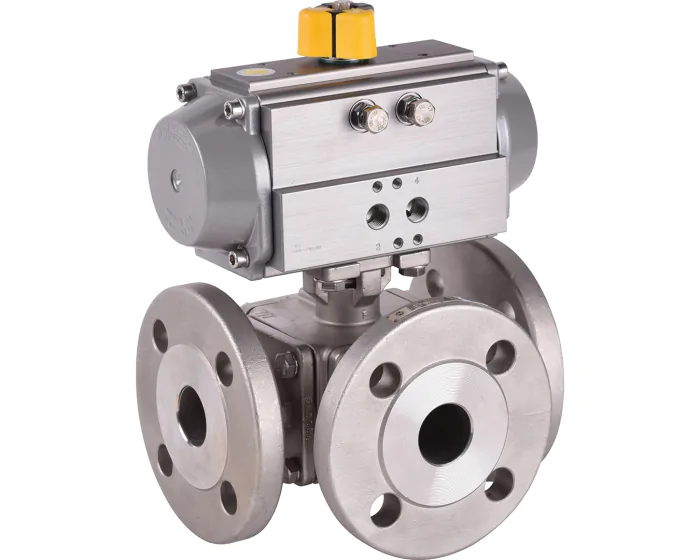

The 785-L/786-T series 3-way ball valve has a stainless steel body (1.4408), a stainless steel ball and PTFE seats. It is actuated with an ALPHAIR pneumatic actuator. PS: 16 bar, TS: 150°C.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 316 |
| Adjustable limit screws | Yes |
| ATEX compatible | Yes |
| DN | DN25 - 1'' |
| Face to Face (mm) | 292.2 |
| Body material | Stainless steel CF8M (1.4408) |
| ATEX protection mode | Ex c |
| Number of ways | 3 |
| Bore | Reduced |
| Packing gland | PTFE |
| PS (bar) | 16 |
| Connections | Flanged PN16 |
| Seats | PTFE-Glass |
| Ball material | Stainless steel 316 |
| Surface temperature | TX |
| TS max (°C) | 150 |
| TS min (°C) | -30 |
| 3-way type | T-port |
| Pneumatic actuator type | Spring return |
| ATEX zone | 1.21.2.22 |
| Warranty period | 1 year |
| CE | Risk category II |
| Range | Industry |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN16 Stainless steel CF8M (1.4408) Reduced DN25 - 1'' | 275374017007R | S1000906 |
€652.84
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Reduced DN25 - 1'' | 275374017108R | S1000907 |
€731.67
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Reduced DN32 - 1''1/4 | 275375017008R | S1000908 |
€737.49
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Reduced DN32 - 1''1/4 | 275375017109R | S1000909 |
€825.29
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Reduced DN40 - 1''1/2 | 275376017008R | S1000910 |
€1,123.73
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Reduced DN40 - 1''1/2 | 275376017110R | S1000911 |
€1,283.74
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Reduced DN50 - 2'' | 275377017009R | S1000912 |
€1,472.86
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Reduced DN50 - 2'' | 275377017111R | S1000913 |
€1,725.81
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Reduced DN65 - 2''1/2 | 275378017010R | S1000914 |
€2,017.66
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Reduced DN65 - 2''1/2 | 275378017112R | S1000915 |
€2,279.29
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Reduced DN80 - 3'' | 275379017011R | S1000916 |
€2,695.61
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Reduced DN80 - 3'' | 275379017113R | S1000917 |
€3,155.66
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Reduced DN100 - 4'' | 275380017012R | S1000918 |
€5,396.03
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Reduced DN100 - 4'' | 275380017114R | S1000919 |
€5,957.29
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Reduced DN125 - 5'' | 275381017013R | S1000920 |
€6,951.53
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Reduced DN125 - 5'' | 275381017115R | S1000921 |
€7,828.71
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Reduced DN150 - 6'' | 275382017014R | S1000922 |
€9,639.00
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Reduced DN150 - 6'' | 275382017116R | S1000923 |
€10,740.60
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Reduced DN25 - 1'' | 275384017007R | S1000924 |
€652.84
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Reduced DN25 - 1'' | 275384017108R | S1000925 |
€731.67
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Reduced DN32 - 1''1/4 | 275385017008R | S1000926 |
€737.49
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Reduced DN32 - 1''1/4 | 275385017109R | S1000927 |
€825.29
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Reduced DN40 - 1''1/2 | 275386017008R | S1000928 |
€1,123.73
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Reduced DN40 - 1''1/2 | 275386017110R | S1000929 |
€1,283.74
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Reduced DN50 - 2'' | 275387017009R | S1000930 |
€1,472.86
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Reduced DN50 - 2'' | 275387017111R | S1000931 |
€1,725.81
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Reduced DN65 - 2''1/2 | 275388017010R | S1000932 |
€2,017.66
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Reduced DN65 - 2''1/2 | 275388017112R | S1000933 |
€2,279.29
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Reduced DN80 - 3'' | 275389017011R | S1000934 |
€2,695.61
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Reduced DN80 - 3'' | 275389017113R | S1000935 |
€3,155.66
(excl. btw)
|
add to cart |
